Image Sensor |
1/4” OV9732 |
|
Active array size |
1280*720 |
|
Pixel size |
3.0um*3.0um |
|
Output formats |
10bits Raw RGB |
|
Max S/N ratio |
39dB |
|
Dynamic range |
72Db @8*gain |
|
Maximum image transfer rate |
30fps full resolution |
|
sensitivity |
2.066 V/Lux-sex |
|
Input clock frequency |
6~27 MHz |
|
Power requirements |
Active:99mW Standby:36uw |
|
Power Supply |
Core:1.7~1.9V Analog: 2.7~2.9V I/O:1.7~1.9V |
|
Operating temperature |
-20~70 ℃ |
|
Storage temperature(℃) |
-30~80 ℃/0~90RH |
|
Digital interface |
24PIN MIPI (ZIF 0.3mm) |
|
FOV(D) |
170° |
|
IR Filter |
IR-CUT(Day filter + Night filter) |
|

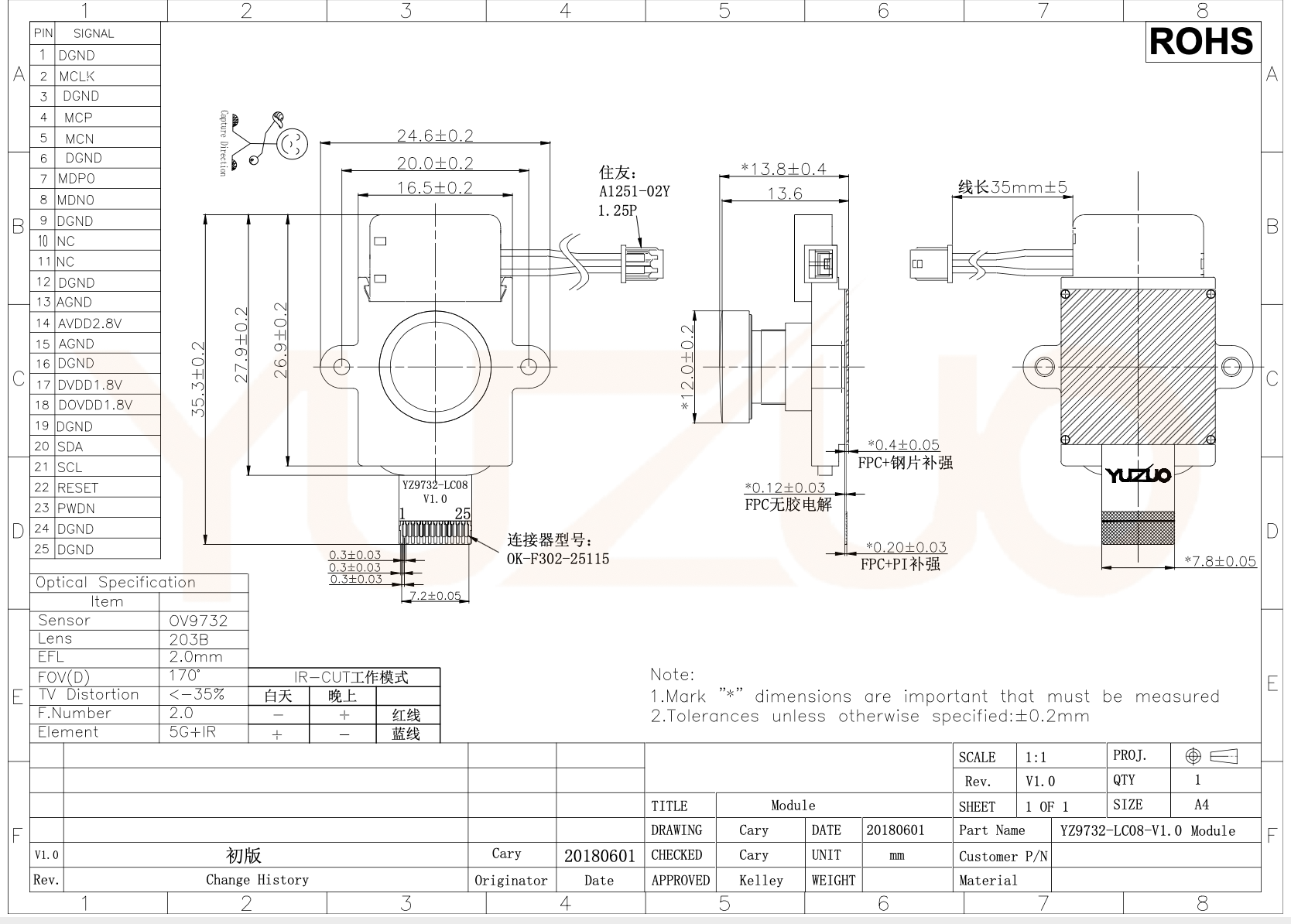

Dimension |
See drawings |
|
Customizing |
Yes |
