Image Sensor |
1/3” OV4689 |
|
Active array size |
2688*1520 |
|
Pixel size |
2.0um*2.0um |
|
Output formats |
Raw Data 10bits |
|
Max S/N ratio |
38.3dB |
|
Dynamic range |
64.6Db @1*gain |
|
Maximum image transfer rate |
2688*1520 90fps 1280*720 180fps 1920*1080 120fps 672*380 330fps |
|
sensitivity |
1900 Mv/Lux-sex |
|
Input clock frequency |
6~64 MHz |
|
Power requirements |
Active:163mA(261mW) Standby:1mA XSHUTDOWN:＜10uA |
|
Power Supply |
Core:1.1~1.3V Analog:3.6~3.0V I/O:1.7~3.0V |
|
Operating temperature |
-20~70 ℃ |
|
Storage temperature(℃) |
-30~80 ℃/0~90RH |
|
Digital interface |
40PIN MIPI (ZIF 0.5mm) |
|
FOV(D) |
100° |
|
IR Filter |
650IR for Color Camera 850IR for W/B Camera |
|

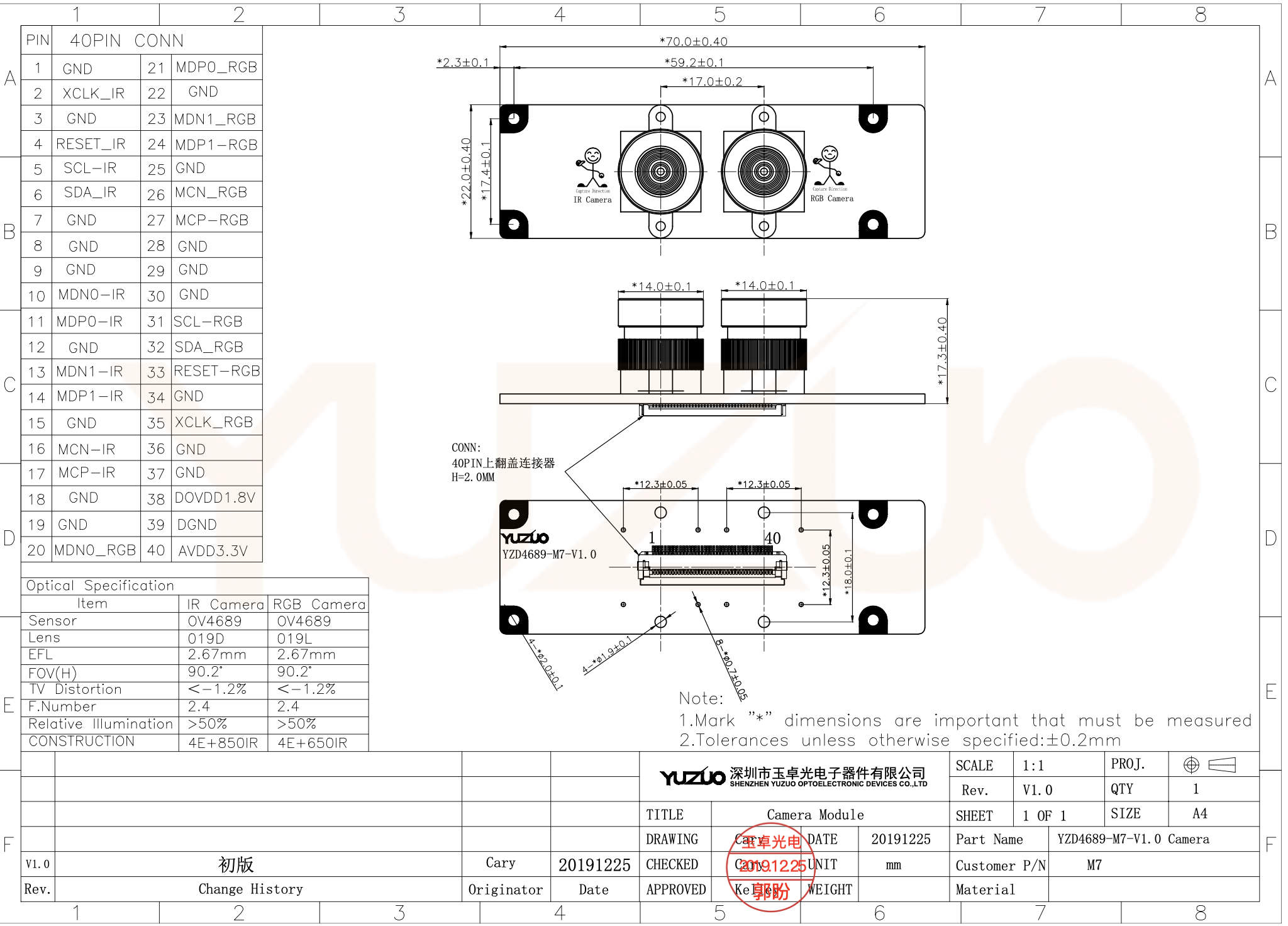

Dimension |
See drawings |
|
Customizing |
Yes |
